Lugar de origem:
Xangai, China
Marca:
Tianfeng
Certificação:
CE ISO
Número do modelo:
GZPS660

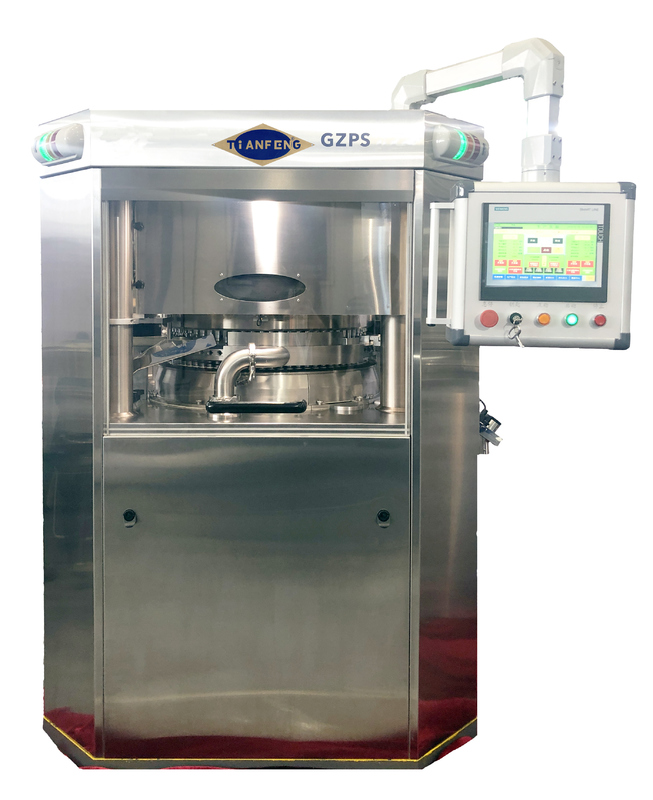

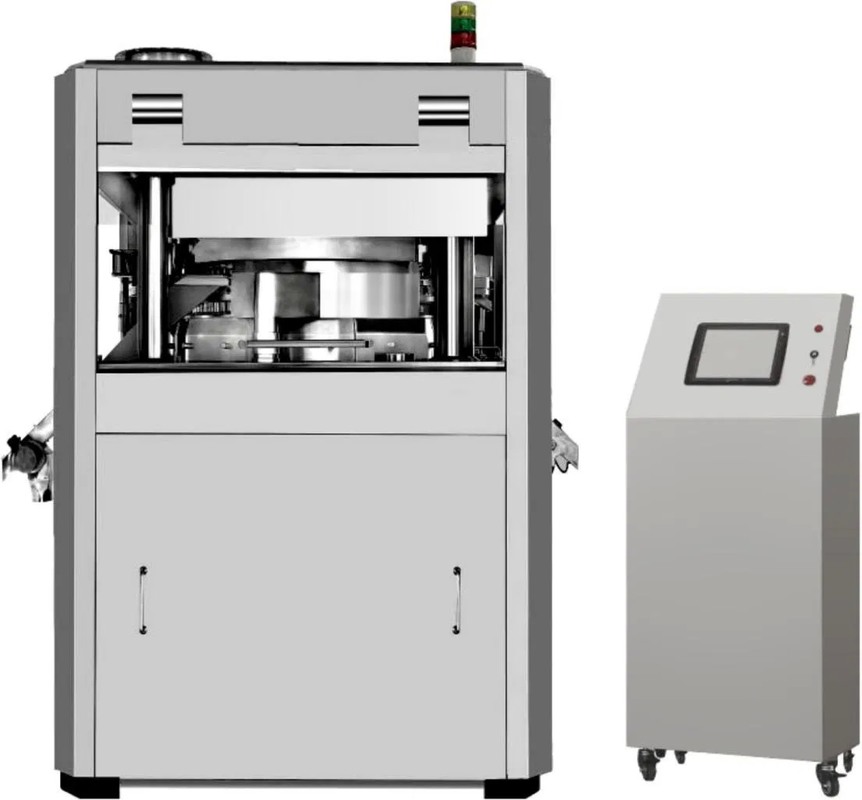

This double-sided rotary tablet press machine transforms granular materials into round, irregular, or double-side engraved tablets. Ideal for pharmaceutical, chemical, food, and electronic industries.
The GZPS660 model features an advanced operation system with tablet weight control, allowing easy adjustment of main pressure, pre-pressure, and filling depth without handwheels. It records all process parameters for each production batch and provides effective hardness and weight monitoring.
| Model | GZPS-45 | GZPS-55 | GZPS-75 |
|---|---|---|---|
| No. of Stations | 45 | 55 | 75 |
| Max. Tablets Output (pcs/hour) | 405,000 | 495,000 | 675,000 |
| Max. Pressure (kN) | 100 | 100 | 100 |
| Max. Pre-pressure (kN) | 20 | 20 | 20 |
| Max. Tablet Diameter (mm) | Round: 25 Special: 25 |
Round: 16 Special: 19 |
Round: 13 Special: 16 |
| Max. Filling Depth (mm) | 20 | 20 | 20 |
| Max. Tablet Thickness (mm) | 8 | 8 | 8 |
| Max. Turret Speed (1/min) | 75 | 75 | 75 |
| Main Motor Power (kW) | 11 | 11 | 11 |
| Machine Dimensions (mm) | Host: 1704×1380×1926 Control Cabinet: 750×550×1750 |
||
| Machine Weight (kg) | Host: 3980 Control Cabinet: 240 |
||
