ZP15D Rotary Tablet Press Machine with 15 Dies 60kn Max Pressure and 22mm Max Diameter for Candy and Pharmaceutical Industries

15 Dies Rotary Tablet Press Machine

60kn Max Pressure Tablet Press Machine

22mm Max Diameter Pill Press Machine

Contacte-nos

Peça umas citações

ZP15D Rotary Tablet Press Machine with 15 Dies 60kn Max Pressure and 22mm Max Diameter for Candy and Pharmaceutical Industries

Detalhes do produto

Modelo no.:

ZP15D

Tensão:

380V

Conjuntos de matrizes:

Pressão máxima:

60 kN

Diâmetro máximo do comprimido:

22 mm

Profundidade máxima de preenchimento:

15 mm

Espessura máxima do comprimido:

6 mm

Capacidade de produção:

35000 pcs/h

Velocidade da torre:

37 r/min

Energia motora:

2.2 KW

Velocidade do motor:

960 RPM

Tamanho geral:

615 x 890 x 1.415 mm

Peso:

700 kg

Material:

aço inoxidável

Tipo de lubrificação:

Óleo-imergido

Termos do pagamento & do transporte

Quantidade de ordem mínima

PRODUTOS CONEXOS

ZP15D Rotary Tablet Press Machine with 15 Dies 60kn Max Pressure and 22mm Max Diameter for Candy and Pharmaceutical Industries

Obtenha o melhor preço

ZP15D Model Rotary Tablet Press Machine with 15 Dies and 60KN Max Pressure for Pharmaceutical and Chemical Industries

Obtenha o melhor preço

ZP15D Rotary Tablet Press Machine with 15 Dies 60KN Max Pressure and 22mm Max Tablet Diameter

Obtenha o melhor preço

ZP15D Rotary Tablet Press Machine with 15 Dies and 60KN Max Pressure for High Capacity Tablet Production

Obtenha o melhor preço

Contacte-nos

86-21-57664559

Contato agora

Descrição do produto

Zp15D Ring Shape Candy Press Machine

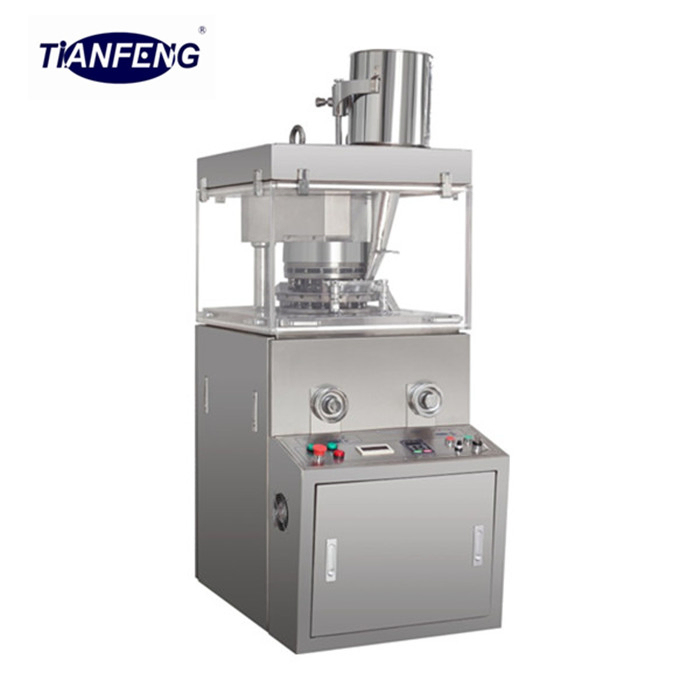

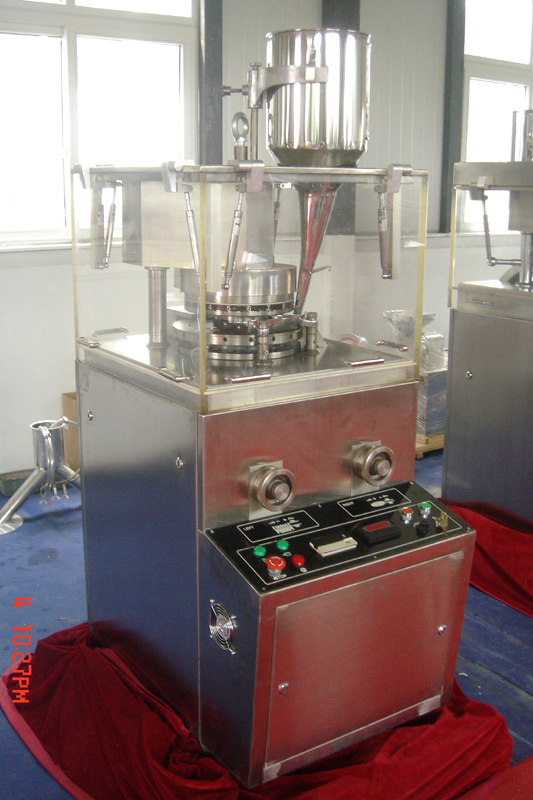

ZPW15D Rotary Tablet Press

Main Application

This single-press type, continuous automatic tablet press converts granular raw materials into tablets. Designed primarily for pharmaceutical applications, it also serves chemical, food, electronic, plastic, and metallurgical industries.

Operating Principle

Fully-enclosed stainless steel construction meets G.M.P requirements
Features transparent windows for clear observation of press conditions, with openable design for easy cleaning and maintenance

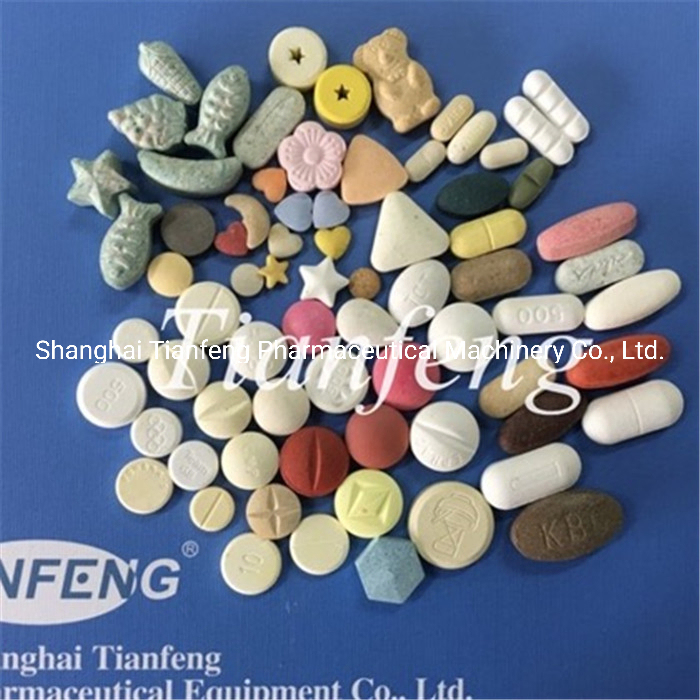

Capable of producing round tablets, various geometric shapes, double-layer tablets, annular tablets, and tablets with impressed letters on both sides
Centralized control panel placement for simplified operation
Integrated overload protection system safeguards punches and apparatus
Fully-enclosed oil-immersed worm gear drive ensures long service life and prevents cross contamination

Technical Parameters

Parameter	Value
Dies (sets)	15
Max. Pressure (kn)	60
Max. diameter of tablet (mm)	22
Max. Depth of fill (mm)	15
Max. Thickness of largest table (mm)	6
Production capacity (pcs/h)	35000
Turret speed (r/min)	37
Motor power (kW)	2.2/960, 380V/50
Overall size (mm)	615 x 890 x 1,415
Weight (kg)	700
