ZP41F ZP45A pharmaceutical pill press Machine with high capacity 100KN

Product Description:

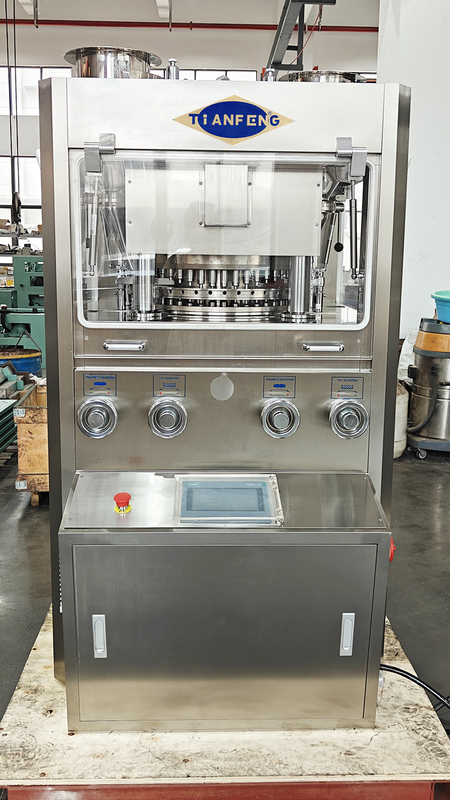

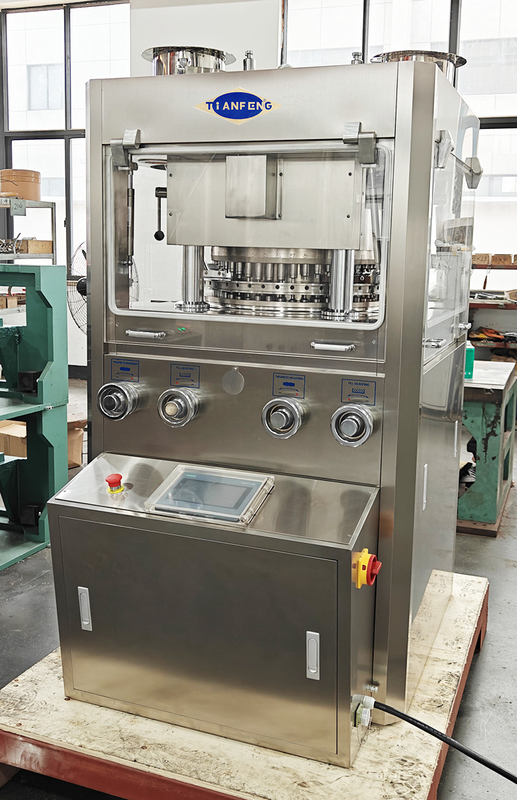

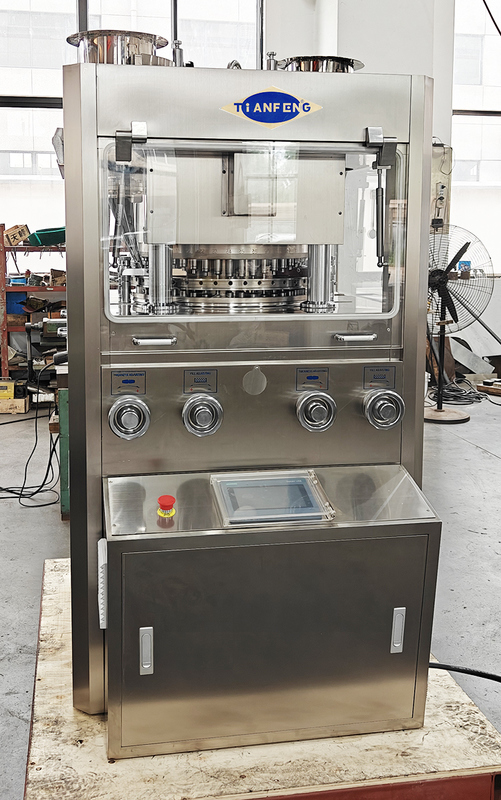

ZP-45A ZP-41F Rotary Tablet Press Machine

Main Working principles:

1. The cover of this tablet press machine is made of stainless steel with close type. The inner tablet surface is also made of stainless steel materials which could keep surface luster and prevent from cross pollution, meets GMP requirement.
2. The compression area is enclosed with transparent organic glass. Through the transparent protective cover can see the mechanical operation of the situation clearly, and can open all of them, easy to cleaning and maintenance.

3. Mechanical and electrical integration, variable speed operation.

Features:

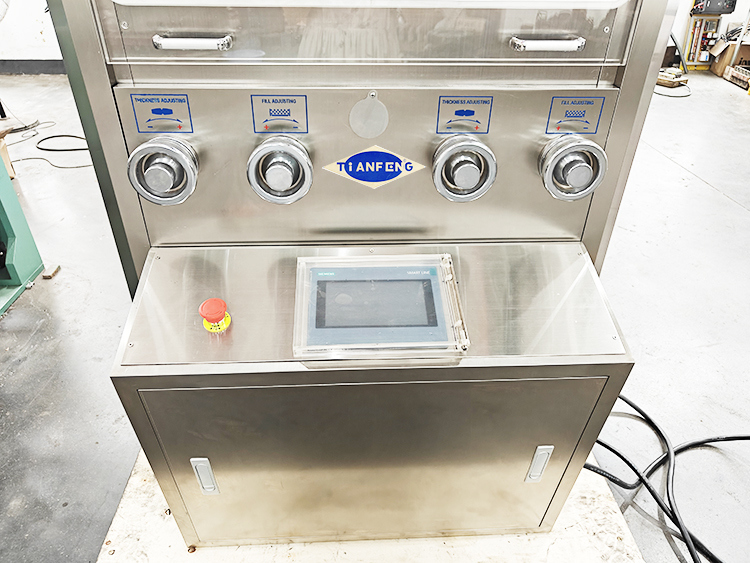

• User-Friendly Operation: Supports button-type frequency conversion speed control and PLC touch screen control (optional), meeting different levels of operational needs.

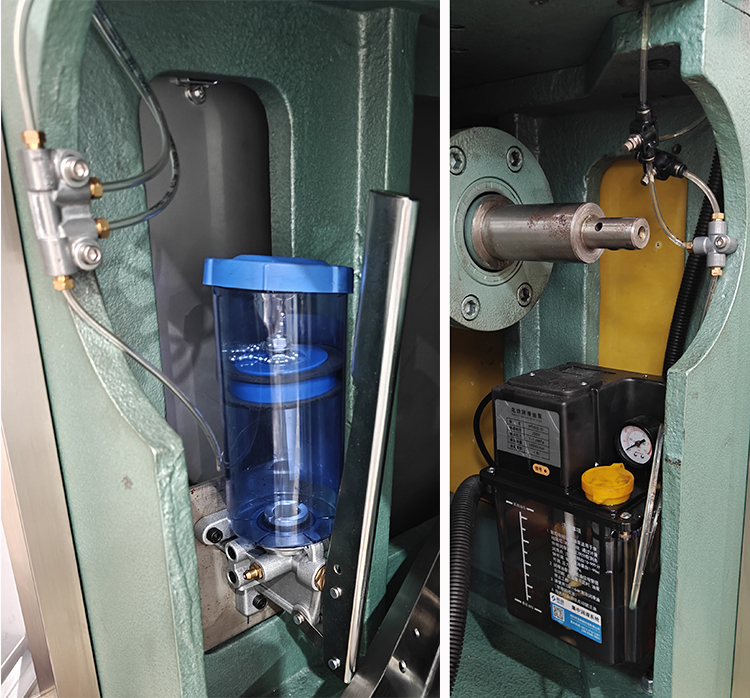

• Efficient Lubrication: Equipped with an automatic oil lubrication system. The grease lubrication system is semi-automatic and requires manual pressing.
• Superior Material: The standard rotary table middle mould plate is made of high-strength OT-500-7 material. Corrosion-resistant 2Cr13 stainless steel material is available as an option.
• Stable Operation: The upper track adopts a high-strength, wear-resistant dual-track design. The parallel rails are fully enclosed and equipped with anti-breakage and anti-drop punch plates, offering good rigidity and excellent dust prevention.
• Contamination Prevention Design: The upper punch of the mould is designed with an oil collection groove. When equipped with an oil collection ring, it effectively collects oil stains and contaminated powder, ensuring tablet cleanliness.

•

• Technical parameter:

  Model	ZP-45A	ZP-41F
  Dies (sets)	45	41
  Max. Pressure (KN)	100	100
  Max. dia. of tablet (mm)	13(special 16)	16(special 22)
  Max. Depth of fill (mm)	15	15
  Max. Thickness of largest tablet (mm)	6	6
  Rotational speed of revolving table(r/min)	14-45	14-45
  Max. Capacity(pcs/h)	243000	221400
  Diameter of rotary table (mm)	460	460
  Diameter of middle bmould (mm)	26	30
  Length of up and low punch pole (mm)	22	22
  Length of the lower punch pole(mm)	115	115
  Dimension (L*W*H)(mm)	910x1220x1670	910x1220x1670
  Motor(KW)	7.5kW 4L	7.5kW 4L
  Net Weight	1950	1950



Support and Services:

Installation and after sales service:

Installing and Commission: We will install and test the machine in best working condition before shipment. If customer requires our technician to adjusting the machine and train technician at arrival place, we will send technician there. All our expenses including round-trip air ticket to the nearest airport, local conveyance to your factory, Lodging & Boarding expenses shall be payable by you.

Warranty Period:

There is one year for fully machine guarantee. And in this year if the machine broken caused by Mechanical problem, all of the spare part is free. The service of the machine all though the machine’s life.

After Sales Service:

1. We have 24 hours hot line for technical support.

2. We get 18 hours internet line for technical support.

3. Video camera in workshop to help you adjust and solve machine problem in working situation.

Packing and Shipping:

Product Packaging and Shipping:

Our Rotary Tablet Press Machine is carefully packaged to ensure safe delivery to our customers. The machine is securely wrapped in protective materials to prevent any damage during transportation. Additionally, the package is labeled with handling instructions and product information for easy identification.

For shipping, we partner with reliable courier services to deliver the Rotary Tablet Press Machine to your doorstep in a timely manner. You can track your shipment using the provided tracking number to know the status of your delivery.

FAQ:

A: The brand name of the Rotary Tablet Press Machine is Tianfeng.

Q: What are the available models of the Rotary Tablet Press Machine?

A: The available models are ZP41F, ZP45A

Q: Where is the Rotary Tablet Press Machine manufactured?

A: The Rotary Tablet Press Machine is manufactured in Shanghai, China.

Q: What certifications does the Rotary Tablet Press Machine have?

A: The Rotary Tablet Press Machine is CE/ISO certified.

Q: What are the accepted payment terms for purchasing the Rotary Tablet Press Machine?

A: The accepted payment terms are L/C, T/T, and Western Union.
